witnesses

witnesses is provided by transaction creator to enable the successful execution of the corresponding Script. For example, signatures might be included to ensure a signature verification Lock Script passes.

In CKB convention, public key information is stored in the args of the Script, while signature information is in witnesses.

witnesses is a bytes vector. You can serialize any proof data required by the transaction into bytes vector in the witnesses field. The serialization can be done using Molecule or any other custom serialization method.

note

A transaction without the witnesses field is referred to as a Raw Transaction. The transaction hash is calculated from this raw transaction. However, the length of witnesses, which affects the transaction size, is considered into the transaction fee.

Conventional Usage

witnesses is highly flexible in CKB transaction, allowing the Scripts to use various methods to read witnesses data for transaction validation. To ensure compatibility and non-interference among Scripts, certain conventions are established. So far there are two: WitnessArgs and CoBuild.

WitnessArgs

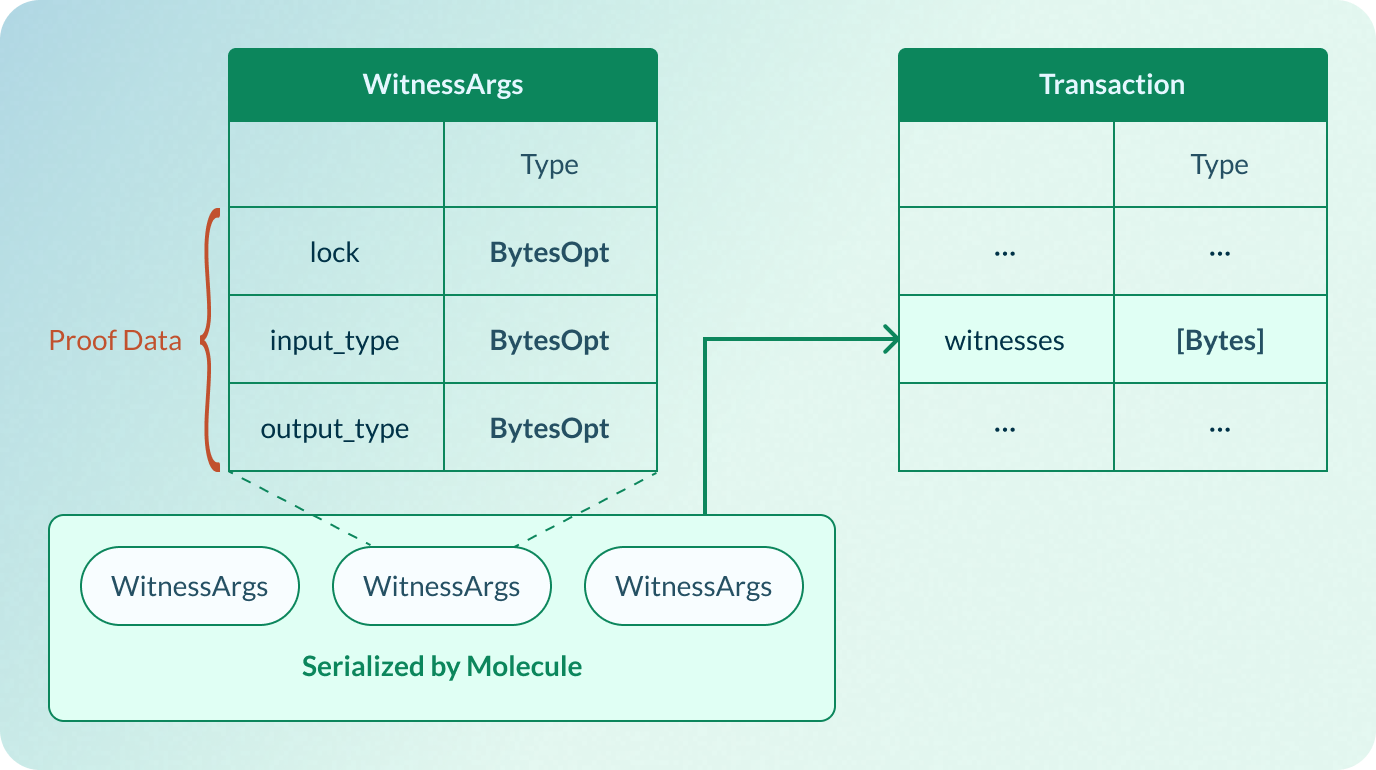

WitnessArgs is a convention actively used in the CKB community. Its structure includes three fields:

table WitnessArgs {
    lock:                   BytesOpt,          // Lock args
    input_type:             BytesOpt,          // Type args for input
    output_type:            BytesOpt,          // Type args for output
}

This structure is a table defined in Molecule. All three fields are optional (Opt), and can be chosen depending on the contract’s requirements.

On CKB, different Scripts run at different times:

• A Lock Script only runs on input Cells (when they are being spent).
• A Type Script runs on both input and output Cells (when they are being spent and created)

Because of this, the WitnessArgs structure has three optional fields:

• lock: data used by Lock Script
• input_type: data used by Type Script when validating inputs
• output_type: data used by Type Script when validating outputs

By this convention, all Scripts read their Witness data from WitnessArgs.

The order of WitnessArgs items in the witnesses field is also important, as it corresponds to the index in the virtual array created by script grouping.

Example and Test

• Contract: Group Exec
• Unit Test

To illustrate this mechanism, here is a Script that does the following:

1. Prints the contents of its Args (UTF-8 string in this example).
2. Uses load_script_hash to get its own ScriptHash.
3. Uses load_cell_lock_hash and load_cell_type_hash to inspect other Cells’ Lock/Type scripts and print their indices.
4. Uses load_witness_args to obtain all GroupInput and GroupOutput data and print them (Witness values stored as UTF-8 strings).

The test transaction is constructed as follows:

Inputs:
  0:
    Lock:
      Code Hash: lock_script_1
    Type:
      Code Hash: type_script_1
  1:
    Lock:
      Code Hash: lock_script_1
    Type:
      Code Hash: type_script_2
Outputs:
  0:
    Lock:
      Code Hash: lock_script_1
    Type:
      Code Hash: type_script_2
  1:
    Lock:
      Code Hash: lock_script_1
    Type:
      Code Hash: type_script_1

(This transaction is just exchanging two TypeScripts. This is just for demonstration, in fact, this transaction has no special meaning.)

The groups formed are:

• lock_script_1: inputs[0], inputs[1]
• type_script_1: inputs[0], outputs[1]
• type_script_2: inputs[1], outputs[0]

In a CKB transaction, Witnesses are independent from Inputs and Outputs. However, the index of each witness corresponds to the index of the Script group it belongs to.

For example, if type_script_1 is grouped with inputs[0] and outputs[1], then when loading the Witnesses of this group, both witnesses[0] and witnesses[1] will be accessed. (Note that here you must use the corresponding GroupInput and GroupOutput—their Witnesses may differ, or they may be the same.)

After grouping, the Scripts load Witnesses as follows:

• lock_script_1 : witnesses[0], witnesses[1] (via GroupInput)
• type_script_1 : witnesses[0] (via GroupInput), witnesses[1] (via GroupOutput)
• type_script_2 : witnesses[1] (via GroupInput), witnesses[0] (via GroupOutput)

From this, we can see that multiple Scripts may end up using the same Witness. This situation is common in real transactions. To resolve potential conflicts, CKB introduces a standard convention: WitnessArgs.

The three fields in WitnessArgs map precisely to the three possible positions above. For example, when lock_script_1 obtains witnesses[0], it can extract only the lock field; similarly, type_script_1 can take the input_type field from witnesses[0].

Raw Test Output (full logs)

---- tests::test_group_exec stdout ----
[contract debug] lock 1
[contract debug] Inputs Lock:  [00, 01]
[contract debug] Inputs Type:  None
[contract debug] Outputs Type: None
[contract debug] Index: 0, Lock Witnes:  Witness 0, Lock
[contract debug] Index: 1, Lock Witnes:  Witness 1, Lock
[contract debug] type 2
[contract debug] Inputs Lock:  None
[contract debug] Inputs Type:  [01]
[contract debug] Outputs Type: [00]
[contract debug] Index: 0, InputType Witnes:  Witness 1, Input Type
[contract debug] Index: 0, OutputType Witnes:  Witness 1, Output Type
[contract debug] Index: 0, InputType Witnes:  Witness 0, Input Type
[contract debug] Index: 0, OutputType Witnes:  Witness 0, Output Type
[contract debug] type 1
[contract debug] Inputs Lock:  None
[contract debug] Inputs Type:  [00]
[contract debug] Outputs Type: [01]
[contract debug] Index: 0, InputType Witnes:  Witness 0, Input Type
[contract debug] Index: 0, OutputType Witnes:  Witness 0, Output Type
[contract debug] Index: 0, InputType Witnes:  Witness 1, Input Type
[contract debug] Index: 0, OutputType Witnes:  Witness 1, Output Type
consume cycles: 245118

In this test, all three fields (lock, input_type, output_type) are filled for demonstration purposes. Whether Lock or Type, each script group retrieves its entry Witness from its first input index. When multiple groups share the same input index, they may appear to “reuse” the same Witness, but they only read their relevant field, avoiding conflicts.

CoBuild

CoBuild is a protocol that describes an off-chain procedure for multiple parties to collaboratively create a CKB Transaction. It also aims to create a composable and automation-friendly transaction witness layout standard, replacing the existing WitnessArgs.

However, CoBuild protocol is still in its early stage, so it is not widely used for the moment, and the standard is not finalized yet. You can learn more about CoBuild from the proposal.

For a detailed explanation of transaction structure, see RFC0022: CKB Transaction Structure.
